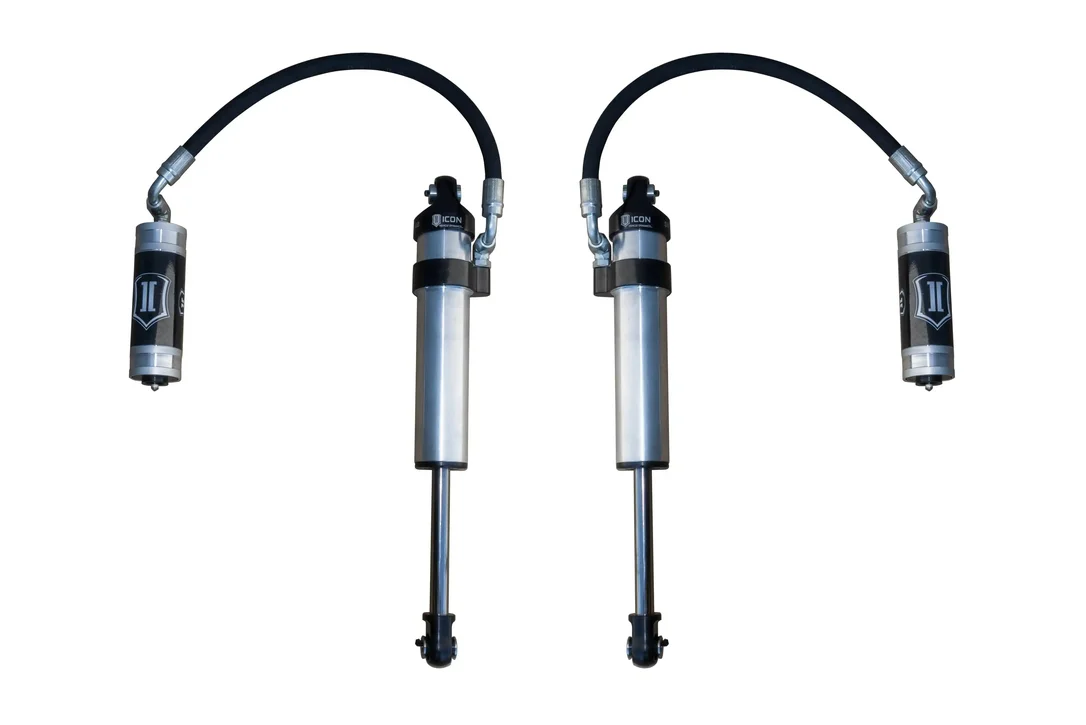

ICON Vehicle Dynamics FRDK_59702P-CB TOYOTA SECONDARY STOCK TRAVEL 2.5 RR PAIR-Fast Shipping

Description

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.r

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

r

• Nitrogen charged monotube design with remote reservoir

r

• 100% Rebuildable

r

• 100% Revalveable

r

• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

r

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

r

• 6061 aircraft grade aluminum CNC machined components

r

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

r

• PTFE lined spherical bearings and application specific mounting hardware

r

• 7/8” diameter induction hardened, chrome plated shock shaft

r

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)

r

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

r

rr

Attributes:

r

r
• GTIN: 00840103404639

r

• Brand Name: ICON Vehicle Dynamics

r

• 30: Yes

r

• 3390: Performance

r

• 359: 2.5

r

• 408: Center of Eylet

r

• 409: Center of Eylet

r

• 48: EYELET

r

• 49: EYELET

r

• 50: NO

r

• 51: Yes

r

• 905: 2.25

r

• Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)

r

• Adjustable Damping: No

r

• Cylinder Color: Grey

r

• Cylinder Diameter: 2.5

r

• Cylinder Material: Aluminum

r

• Damping Type: Oil

r

• External Reservoir: Yes

r

• Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT

r

• Shaft Diameter: 0.875

r

• Shaft Material: Chrome

r

rr

Extended Information:

r

r
• Country of Origin: US

r

• Emissions : Emissions Compliance Exempt

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1.0

r

• Package UOM: EA

r

• Dimension: 27.0000 x 12.0000 x 6.0000 inches

r

• Weight: 30.0000 lb
