Description
RCS-011 – Connector Set, 2-Way Metri-Pack 630, 46 Amps
This weatherproof connector set is recommended for the following medium-currect applications:
GM / Aftermarket Fans
Large Fuel Pumps
Bottle Heaters
Large Nitrous Solenoids
SPECIFICATIONS (KIT):
WIRE O.D. (mm): 3.72-4.48 (ORANGE)
WIRE GAUGE (AWG): 10-12

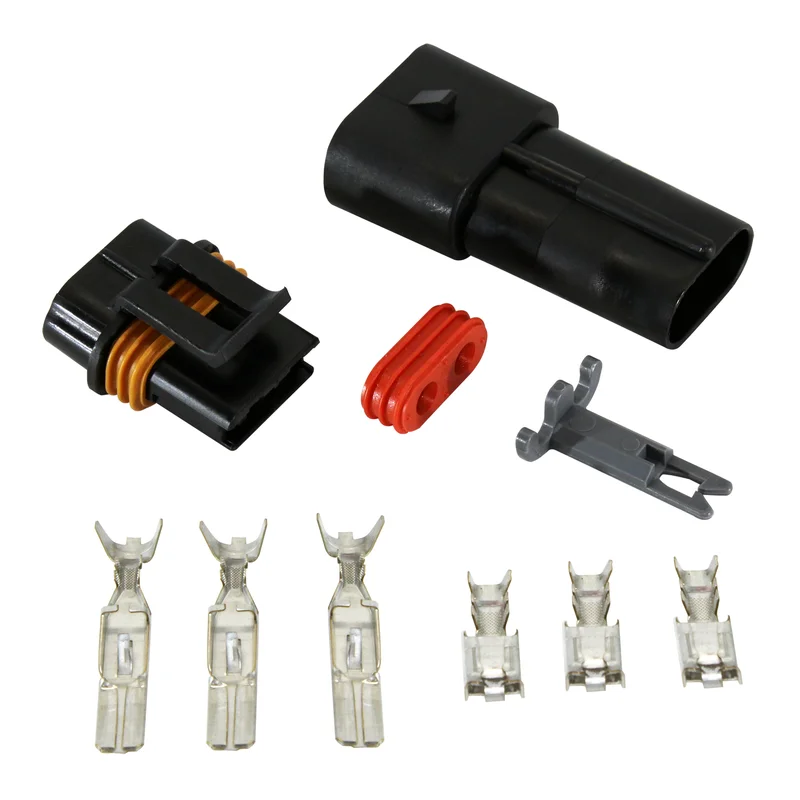

KIT INCLUDES:
1 x Female Connector Body
1 x Male Connector Body
2 x Cable Seals (Orange)
3 x Male Terminals (1 spare)
3 x Female Terminals (1 spare)
1 x Terminal Lock (Gray)
NOTE: Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFACTIONS:
CURRENT RANGE (AMPS): 0-46
TEMP RANGE °C: -40 to 125
RESISTANCE: mOhm@20mV
VOLTAGE DROP:
CENTERLINE SPACING (mm): 10.8
BLADE WIDTH (mm): 6.3
