Connector Set, 10W, 150M/P, Sealed-Fast Shipping

Description

RCS-017 – Connector Set, 10-Way Metri-Pack
This weatherproof connector set is recommended for the following medium-currect applications:

Lighting

Fuel Pumps

Water Pumps

Ignition Systems

SPECIFICATIONS (KIT):

WIRE O.D. (mm): 2.03-2.85 (RED)

WIRE GAUGE (AWG): 16 Max.

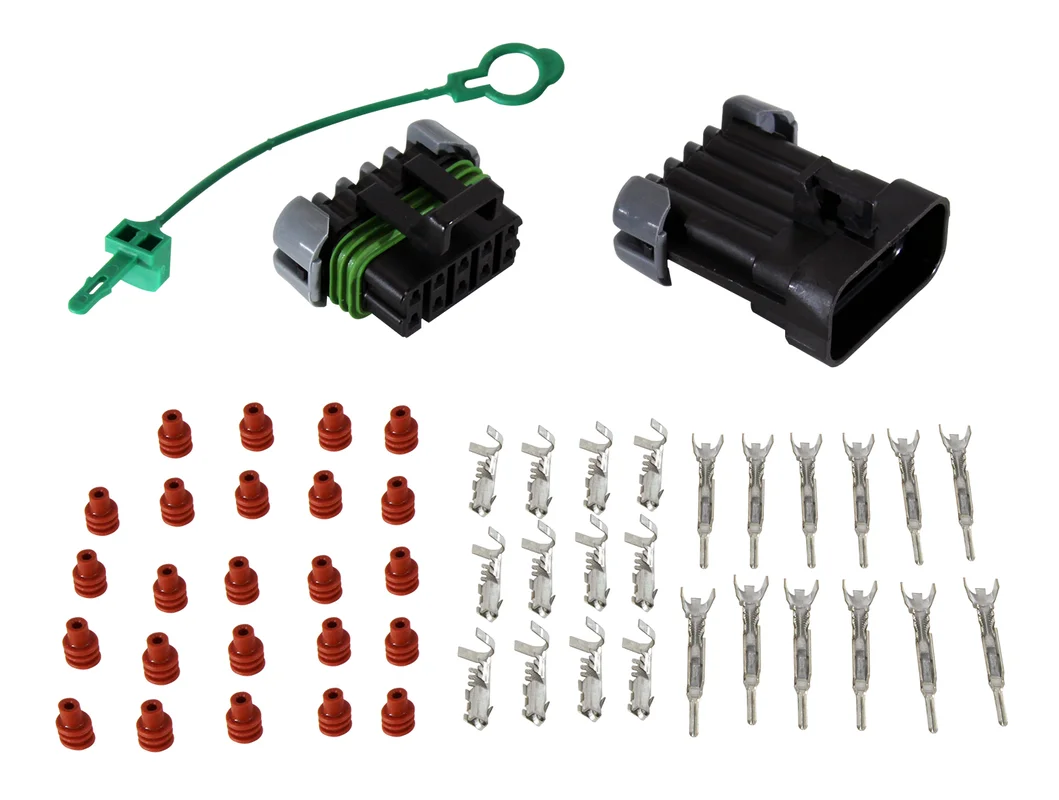

KIT INCLUDES:

1 x Female Connector Body

1 x Male Connector Body

2 x 10-Way Terminal Lock

24 x Cable Seals (Red)

12 x Male Terminals (2 spare)

12 x Female Terminals (2 spare)

NOTE: Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFICATIONS:

CURRENT RANGE (AMPS): 0-14

TEMP RANGE °C: -40 to 125

RESISTANCE:

VOLTAGE DROP:

CENTERLINE SPACING (mm): 6.0

BLADE WIDTH (mm): 1.5
