Description

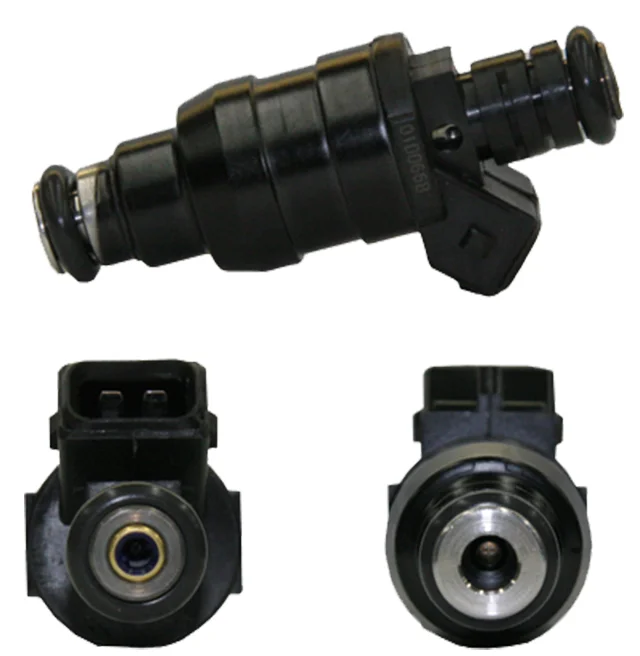

01D066x – 55 lb/hr Disc High-Z Fuel Injector
TYPICAL APPLICATIONS:
High-performance aftermarket
TECHNICAL INFORMATION
Dynamically flowed and grouped to within 1% tolerance using Racetronix custom injector flow bench when purchased in packs.
All tests run with n-Heptane @ 20oC (+/-1oC), 3.0 Bar (+/-0.01 Bar), 14VDC (+/-0.05VDC), saturated driver with RC cutoff.
Injector flow rates are based on testing with n-Heptane test solvent (0.6855 g/ml). U.S. EPA emission test gasoline 40CFR86.113 (0.735g/ml) flows in most common injector designs at about a 3 to 4% higher rate than n-Heptane. A ratio of 1.035:1 can be used when converting the flow specifications above.
This high-impedance injector will work with all factory ECM/PCM injector drivers. ADDITIONAL INFORMATION
The flat mating surface ensures that no excess fuel is present to evaporate and therefore, no deposits or clogging can occur
Longer service life
High-speed disc action allows wider dynamic flow range for improved idling
Quieter operation
Revolutionary disc design resists build up deposits which can affect fuel flow
No Fuel leakage for quicker starts
Grease supplied to lubricate o-rings prior to installation
FLOW-MATCHED 1% INJECTORS ARE SOLD IN PACKS VIA THE ‘BUY IN’ DROP-DOWN MENU ABOVE.
INJECTORS SOLD AS EACH ARE NOT FLOW-MATCHED (LISTED FACTORY TOLERANCE APPLIES)
